2000BPH water filling machine china XGF 8-8-3

Group water filling machine
PriceUS $13000-13500 / piece
Min. Order 1 piece
Terms of Payment L/C, Western Union, T/T
Update Time 2018-07-23
Item specifics
Namewater filling machine china
Capacity2000 Bottles Per Hour
Bottle TypePlastic bottle
Cap TypeScrew cap
Filling Typeno Pressure Filling
vacuum TypeGravity filling
Machine FunctionWashing Filling Capping
Machine Size2000x1500x2200MM
Machine Weight1900KG
  • Description
  • Product review

2000BPH water filling machine china ( XGF8-8-3 )

1. The automatic water filling machine  use direct connection technology between air conveyor and infeeding star

wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.


2. Neck hold technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional

starwheel, we use neck-hanging gripper to make bottle-size changing easily , without equipment height adjustment ,

only arch board and starwheel such little nylon parts need to be changed.


3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to

screw part of the bottle to prevent second pollution in this automatic water filling machine.


4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.


5. Splint of starwheel using twist descending way to simplify the process of bottle-size-changing.The automatic
water filling machine applies to the production of purified water and mineral water.


Small water filling machine china bottle washing filling capping machine for mineral water 2000BPH(8-8-3)

  • washing filling and capping (8-8-3)
  • water filling machine
  • water bottling machine


    1. Machine name: Small bottle washing filling capping machine for mineral water 2000BPH


    2. Producing capacity: 2000BPH-3000BPH (RFCW8-8-3 );

    3. Characteristic: Germany technology, easy operation, durable using, stable action;

    4. Application: Beverage, Mineral water, pure water, flavor water;

    5. CE,ISO9001, BV, UL certification;



    Technical parameters

    We recommend you the complete automatic RFCW8-8-3 model, with 8 rinsing head, 8 filling head, 3 capping head; and its stable capacity can reach to 2000 bottles per hour (500ml).


    If each kind bottle neck diameter and cap is same, the bottle volume can be changed in one filling machine, with replacement for small bottle volume from 250ml to 2000ml; and the replacement process is very easy, with one of workers just 30min will finish all the job.

water filling machine china manufacturers pictures

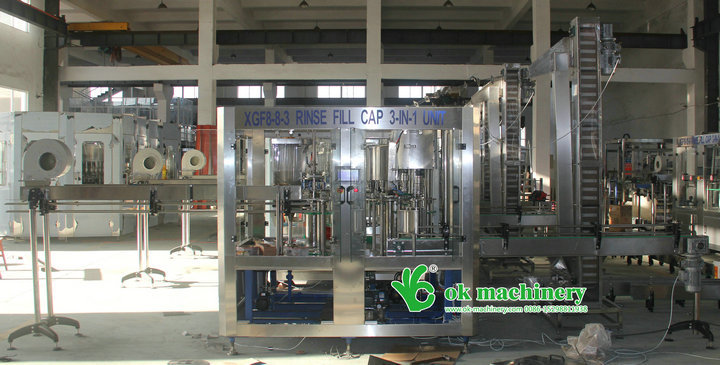

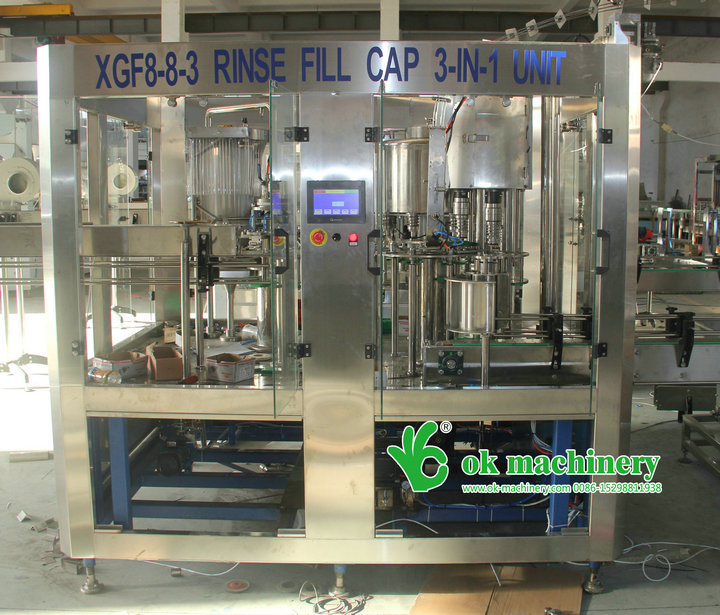

water filling machine china XGF 8-8-3

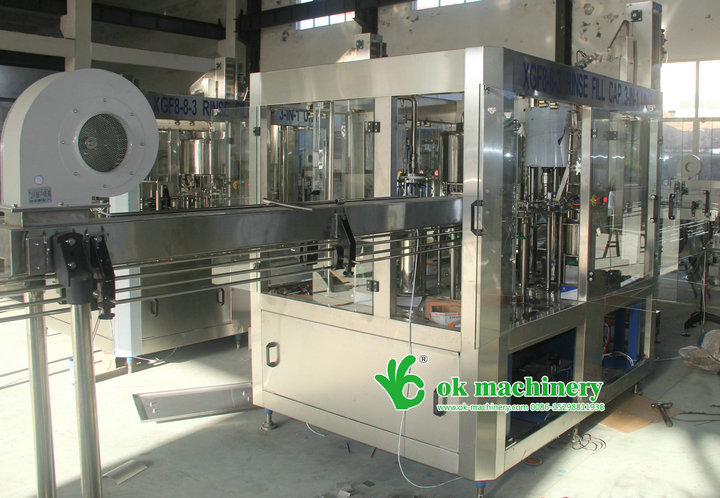

water filling machine china 8-8-3 washing part picture

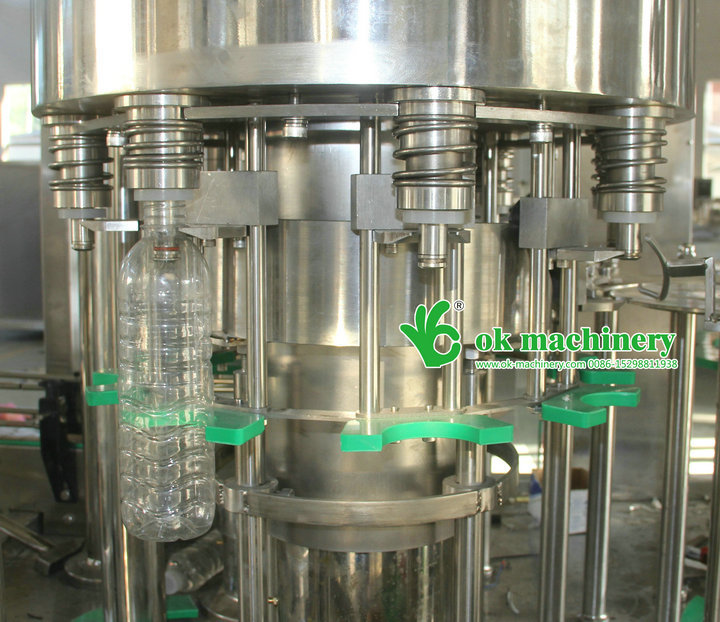

water filling machine china 8-8-3 filling nozzle picture

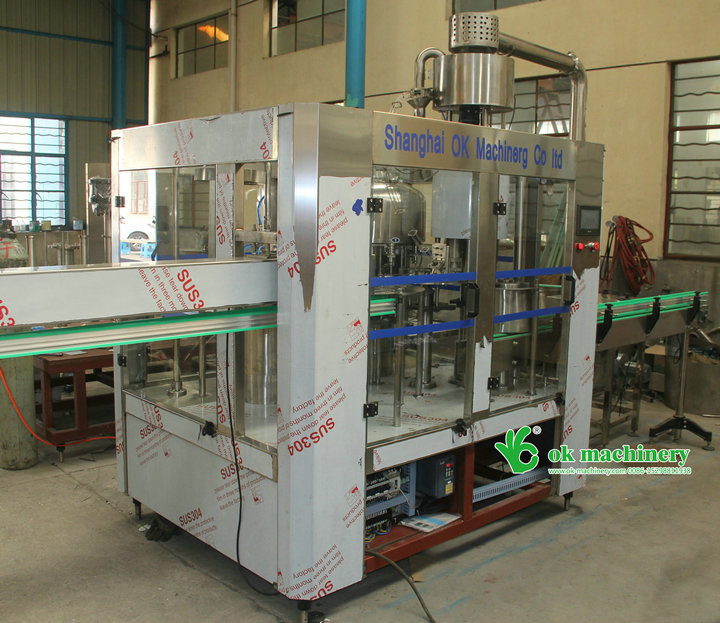

water filling machine china 8-8-3 capping system
