UHT sterilizer for juice

Group cola and juice processing machines
PriceUS $12000 / piece
Min. Order 1 piece
Terms of Payment L/C, Western Union, T/T
Update Time 2018-08-17
Item specifics
NameUHT for juice
ModelUHT
materialstainless steel
degree110-140 degree
times4-6s
function 1juice sterilizer
function 2milk sterilizer
capacity1000 L to 15000 L
Machine Size240x200x220MM
Machine PowerMaine motor 0.5 KW
Description

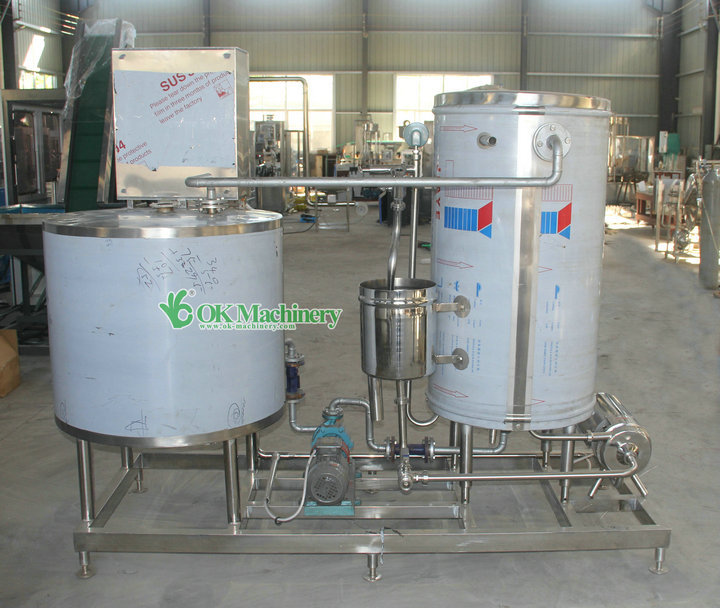

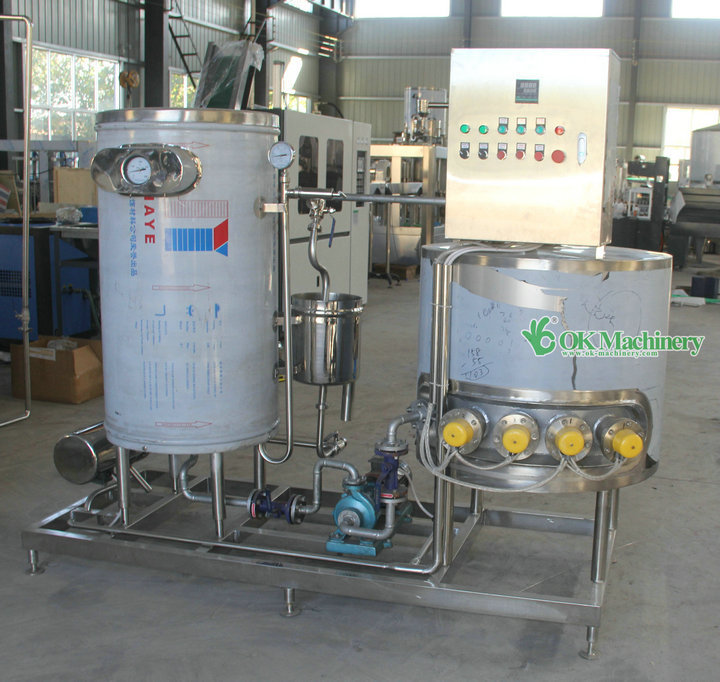

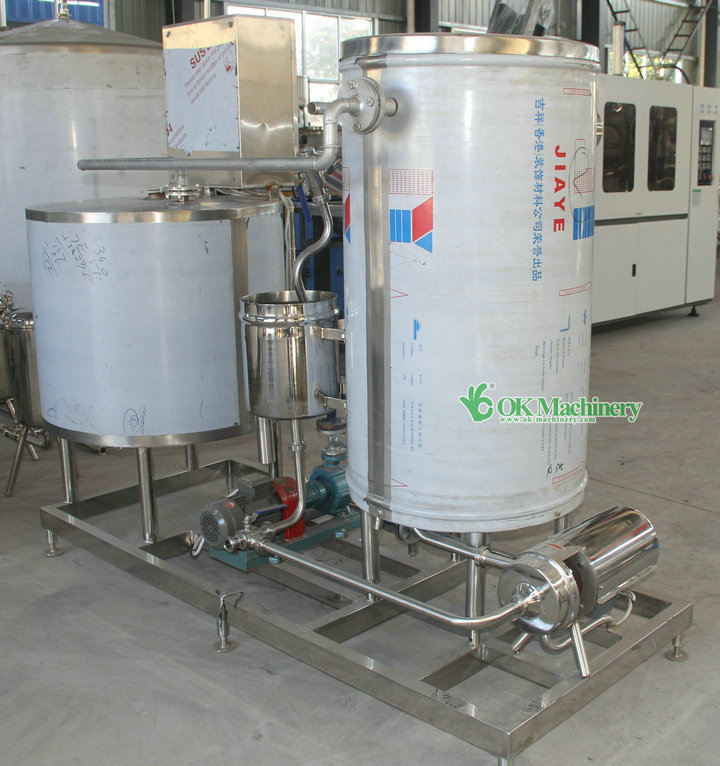

UHT sterilizer for juice


1.Material:SS304,SS316L

2.0.5-6T/H

3.Brand:Flowtam

1. Pasteurizing for various fluid, such as fresh milk, fruit juice, drinks, popsicles, ice cream paste, soy sauce, soy milk, wine and etc.

2. Continuous working with short pasteurizing time span

3. Instant ultra high temperature, excellent pasteurizing effect

4. Cooperated with centrifugal pump or high pressure homogenizer, high viscosity fluid can be processed

5. Made by high quality full stainless steel, high efficiency and stable performance



Model

UHT-1

UHT-2

UHT-4

UHT-6

Capacity (T/H)

0.5~1t/h

1.5~2t/h

3~4t/h

5~6t/h

Sterilization

temperature

115~137°C

115~137°C

115~137°C

115~137°C

Use of steam pressure

<0.78MPa

<0.78MPa

<0.78MPa

<0.78MPa

High-temperature

sterilization time

4~6s

4~6s

4~6s

4~6s

Discharge temperature

<65°C

<65°C

<65°C

<65°C

Feed temperature

<16°C

<16°C

<16°C

<16°C

Steam consumption

<0.12kg/L

<0.15kg/L

<0.15kg/

<0.20kg/L

Power

1.5kW

2.2kW

3kW

4kW

Dimensions(mm)



1200×920×1650

1300×1100×1700

1600×1200×1800

1940×1400×2000
