Automatic Double Heads Shrink Sleeve Labeling Machine For Bottle ( PVC label & PET label )

Group label Packing Machine
PriceUS $23100 / piece
Min. Order 1 piece
Terms of Payment L/C, Western Union, T/T
Update Time 2018-08-02
Item specifics
NameAutomatic Double Heads Shrink Sleeve Labeling Mach
ModelOK 150A
Capacity10000 bottles Per Hour
Bottle Typeplastic bottle glass bottle
Cap TypeScrew Cap
label Typehot shrinking label
working typeinjection from top
Machine Functionbottle body label
Machine Size2400x2000x2200MM
Machine PowerMaine motor 5.5 KW
Description

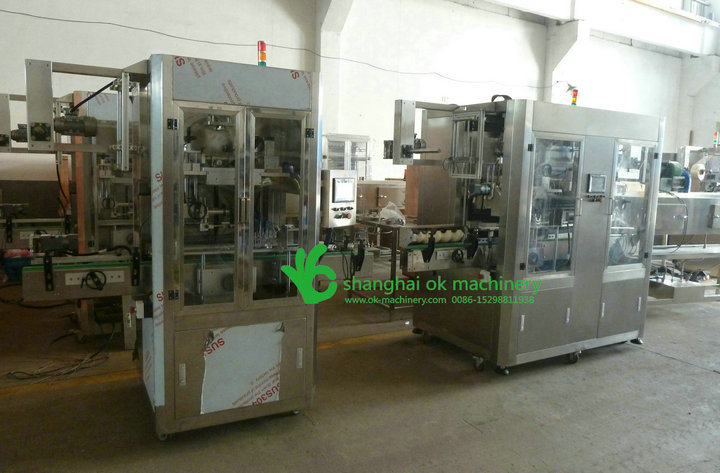

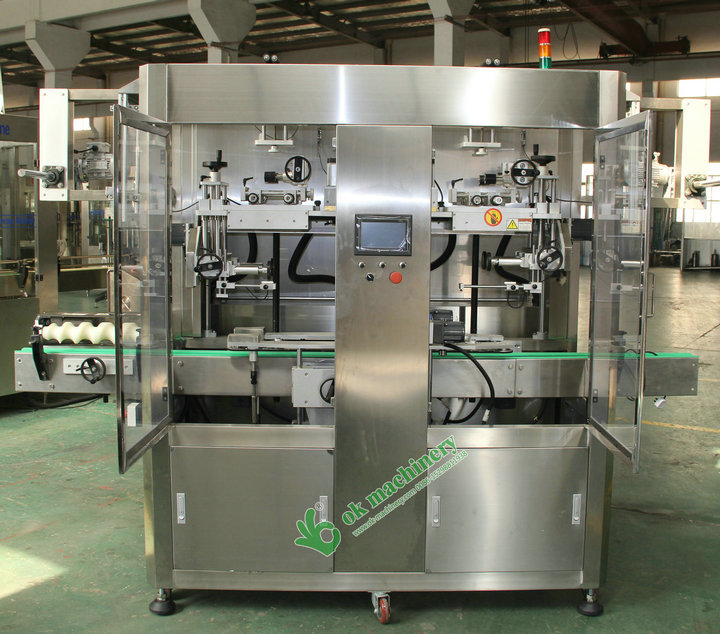

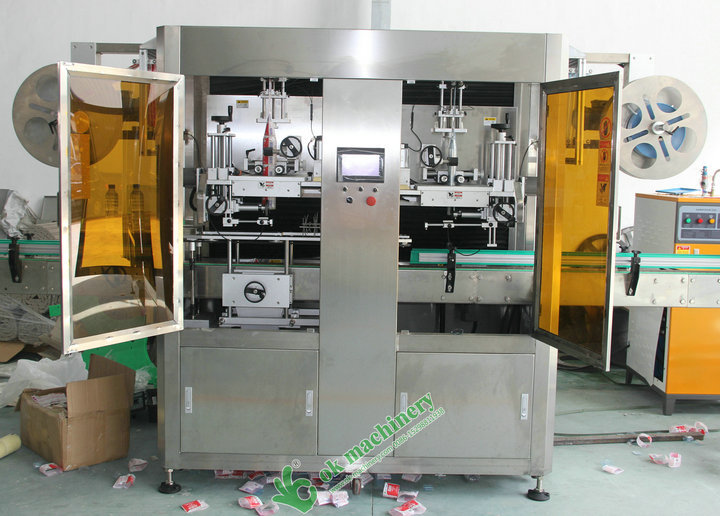

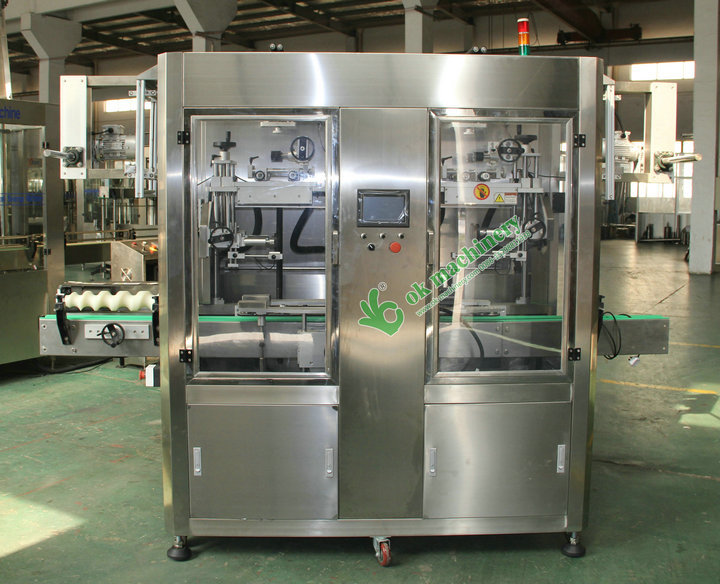

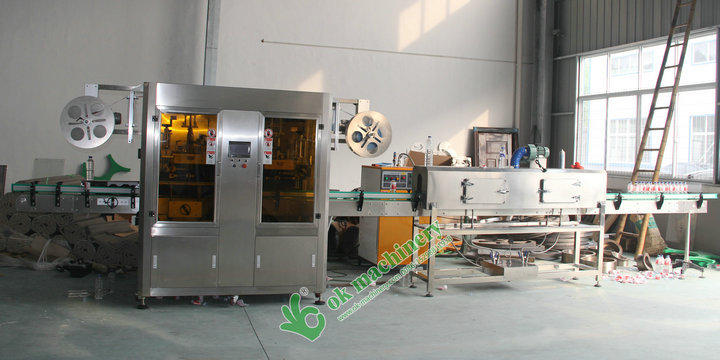

Automatic two head sleeve labeling machine

Features:

1.OK-200Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and

suppliers.It can be used stand alone or integrated in-line and matching filling equipment speeds.

 2.It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation  keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.

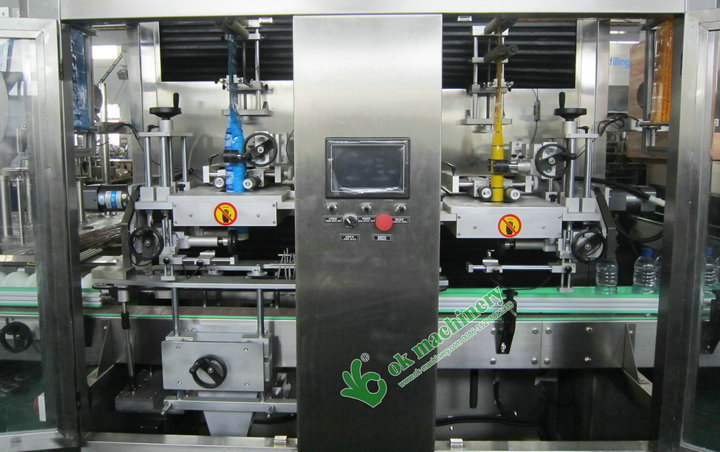

 3.Unit cutter head plane design in China which apply to the container of 30mm-130mm.you never need to change or debug it.It also has unique light touch human-machine screen that means,auto search original location as well as safety and convenience which is ahead of other congener products.

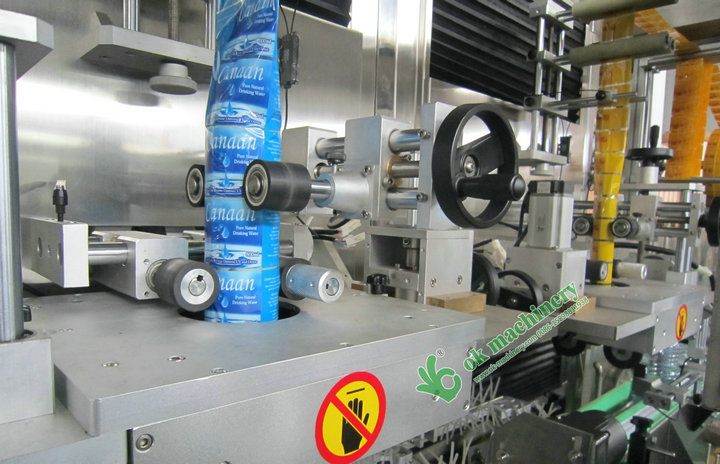

 4.The newly designed cutter stepper motor which speed is high,action is exact,the cut is in order and the

shrinking is beautiful.This design cooperate with the label synchronized location structure enable the

precision of cut location within 1mm.

Packing Size : 3000X1250X2200MM 600KG

Packing Size : 2300X700X1800MM 400KG



 Technical parameters:

Input Power

6.0KW

Input Voltage

3380/220VAC

Production Efficiency

2*300bottles/min

Size of  Host Machine

3200Lx1200Wx2070H

Applicable Diameter of Bottle Body

28mm~125mm

Applicable Length of Label

30mm~250mm

Applicable Thickness of Label

0.03mm~0.13mm

Applicable Internal Diameter of Paper Tube

5”—10”


























two heads shrink label machine Video link :    https://youtu.be/dZDHhzYStGs



bottle boday and bottle cap shrink label machine video :    https://youtu.be/wnnJHHNb8-0
