Automatic single Adhesive sticker labeling machine

Group label Packing Machine
PriceUS $5000 / piece
Min. Order 1 piece
Terms of Payment L/C, Western Union, T/T
Update Time 2018-07-02
Item specifics
NameAutomatic single Adhesive sticker labeling machine
ModelOK2000
Capacity2000 bottles Per Hour
Bottle Typeplastic bottle glass bottle
Cap TypeScrew Cap
label Typehot shrinking label
working typeinjection from top
Machine Functionbottle body label
Machine Size2400x2000x2200MM
Machine PowerMaine motor 5.5 KW
Description

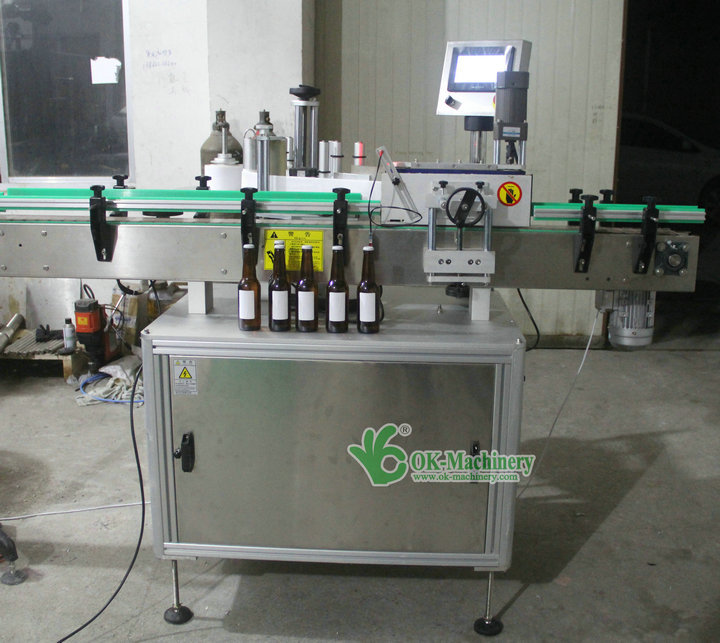

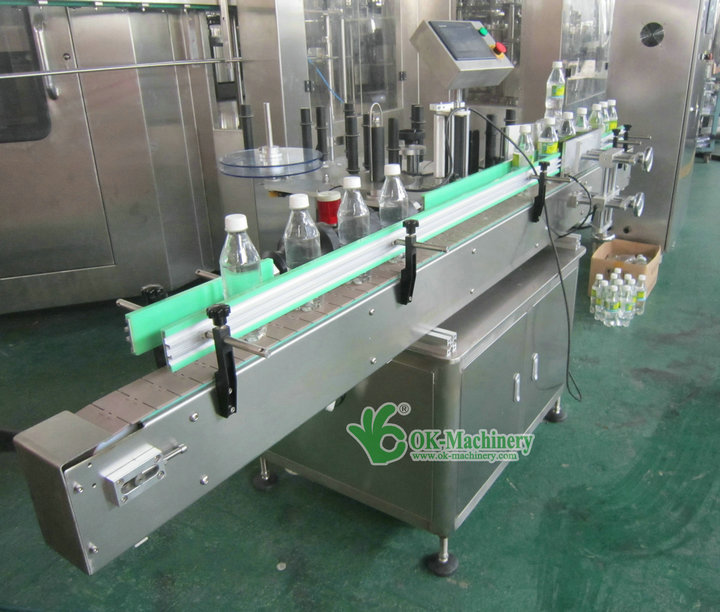

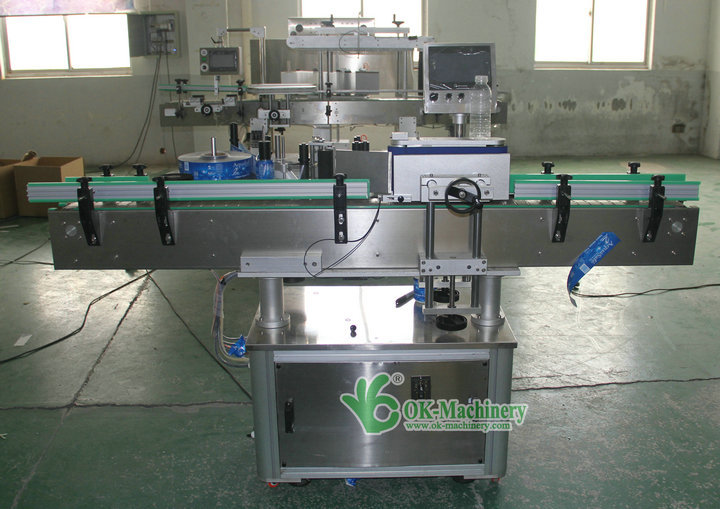

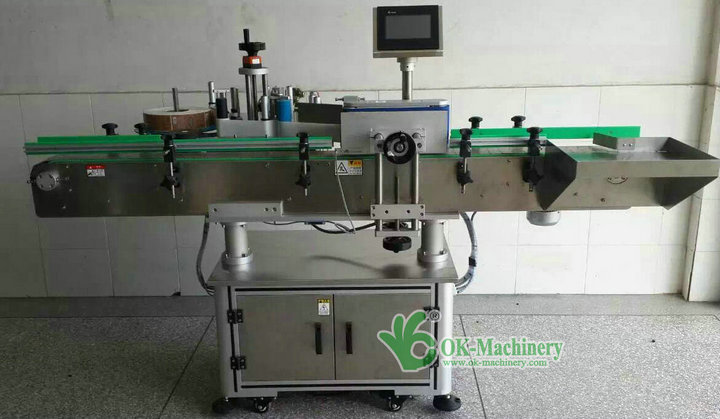

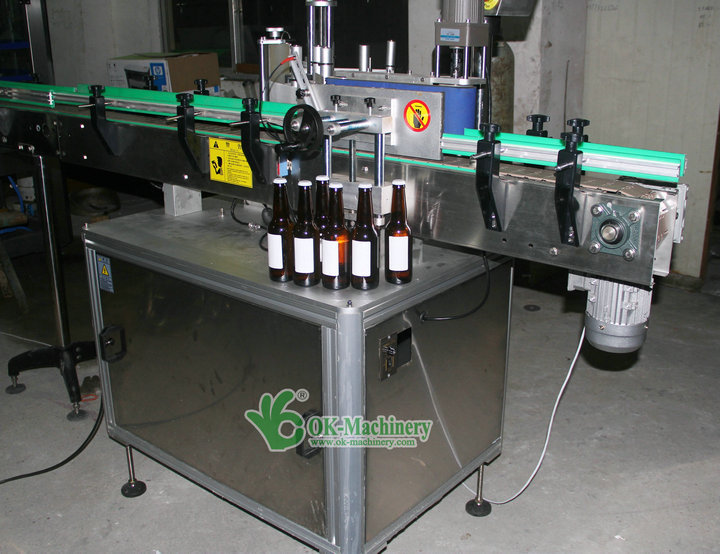

Automatic single Adhesive sticker labeling machine


OK2000 Adhesive labeling machine is applicable to bottled water, cooking oil, chemical paint pesticide cylinder and other cylindrical objects. Rubber wheel divide bottle, equidistant spacing, labeling is more accurate. Wheel attached to the roll on bottles, make label attached more firmly. According to the product need can installation code machine, if you want to install thermal printing machine, need to customize. Can independent operation, or join conveyors. Front part can optional material receiving platform, facilitate product collecting, sorting and packing.



Wide application:small bottle, plastic bottle, glass bottle, juice bottle, beer bottle, beverage bottle, plastic water bottle, glass bottle, oil bottle, milk bottle, wine bottle, pet bottle, mineral water bottle, all kinds of bottle etc..



Main Technological Data:

Model

OK-2000

Voltage

220V 50/60HZ 1.5KW

Labeling speed

50-200pcs/min(up to label object and label length)

Label object height

50-200mm

Label object diameter

20-400mm

Label height

15-180mm

Label length

20-300mm

Labeling precision

±1mm(Excluding label object and tag discrepancy)

Scroll inner diameter

76mm

Scroll outer diameter

380mm

Specification (L*W*H)

2000*1200*1350mm

Weight

175Kg
