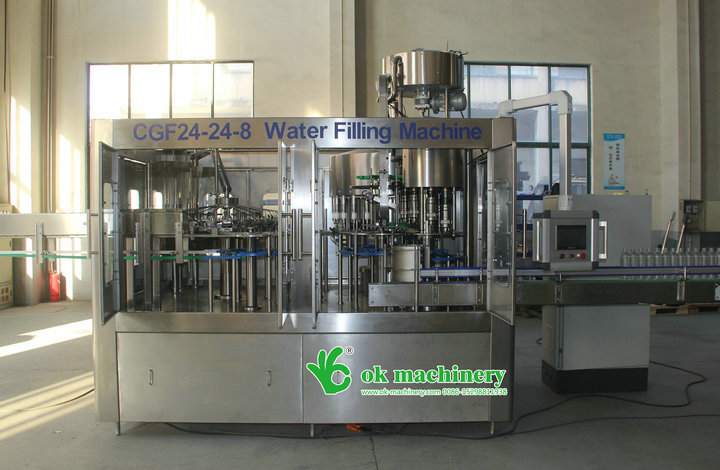

12000BPH water bottle filling machine manufacturers ( XGF24-24-8 )
1. The automatic water filling machine use direct connection technology between air conveyor and infeeding start
wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck hold technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional
start wheel, we use neck-hanging gripper to make bottle-size changing easily , without equipment height adjustment ,
only arch board and start wheel such little nylon parts need to be changed.
3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to
screw part of the bottle to prevent second pollution in this automatic water filling machine.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of start wheel using twist descending way to simplify the process of bottle-size-changing.The automatic
water filling machine applies to the production of purified water and mineral water.
water bottle filling machine manufacturers manufacturers Main Technical Parameters :
Model | CGF14-12-5 | CGF16-16-5 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 |
Capacity(BPH) | 6000 | 8000 | 12000 | 15000 | 22000 |
Filling Precision | ≤±5mm |
Bottle Standard | D40-80, Height:130-280 | Diameter: 50-100, Height: 150-320mm |
Suitable Cap Shape | Plastic Screw Cap |
Water Pressure of Washing | 0.18 Mpa |
Water Consumption for Washing | 800kg/h | 1600kg/h | 2500kg/h | 3500kg/h | 7000kg/h |
Wahsing Position | 16 | 18 | 24 | 32 | 40 |
Filling Position | 12 | 18 | 24 | 32 | 40 |
Capping Position | 6 | 6 | 8 | 10 | 12 |
Gas Consumption (M3/Min) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 |
Total Power (KW) | 4.23 | 5.03 | 6.57 | 8.63 | 9.63 |
Total Weight (KG) | 2000 | 3500 | 5500 | 6000 | 8000 |
Dimension(L*W*H) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2200 | 3500*2200*2200 |
water bottle filling machine manufacturers pictures

water bottle filling machine manufacturers windy air conveyor

water bottle filling machine manufacturers washing part picture

water bottle filling machine manufacturers filling tank and filling nozzle picture

water bottle filling machine manufacturers capping system
